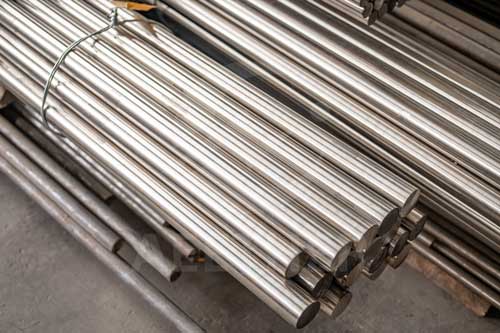

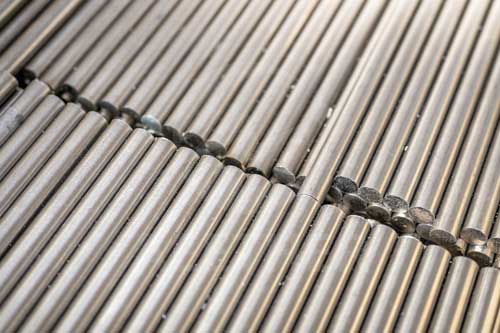

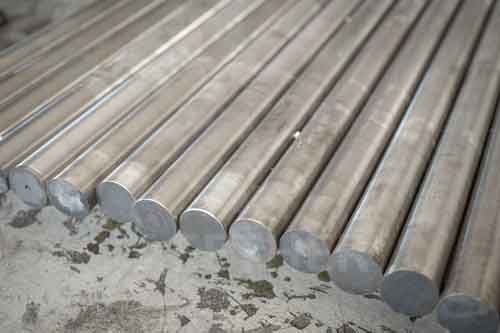

Monel R-405 Round Bar & Rod Supplier
As a trustworthy nickel alloy supplier, we manufacture different sizes of Monel R-405 round bar & rod.
Monel R-405 is an easy-to-machine nickel-copper alloy. Its chemical composition is basically the same as Monel 400. But it improves the machining properties of the alloy.
We manufacture Monel R-405 round bar & rod strictly according to ASTM B164. We use high-purity raw materials and advanced smelting technology to improve the yield of materials. Through precise cold drawing and fine grinding process, we can achieve high dimensional accuracy.
Chemical Composition of Monel R-405
S: 0.025% ~ 0.060%
Si ≤ 0.50%
C ≤ 0.30%
Mn ≤ 2.00%
Cu: 28.0% ~ 34.0%
Fe ≤ 2.5%
Ni ≥ 63.0%
*Chemical Composition According to ASTM B164
The chemical composition of Monel R-405 is basically the same as that of Monel 400. The only difference is that Monel R-405 imposes a stricter limit on the sulfur content of the alloy, thereby improving the machining properties of the alloy.
Customized Dimensions
h9 / h11 Tolerance Available
*Customized size please confirm with us
Standards for Monel R-405 Round Bar & Rod
*As a professional manufacturer, our default standard for Monel R-405 round bar & rod is ASTM B164. We can also produce according to other standards as per you required.
Try our Premium Products
Surface to be Customized
Data Sheet
Physical Properties
| Density | g/cm3 | 8.8 | |
|---|---|---|---|
| lb/in.3 | 0.318 | ||
| Melting Range | °F | 2370 - 2460 | |
| °C | 1300 - 1350 | ||
Mechanical Properties
| Condition & Size | Tensile Strength | Yield Strength (0.2% Offset) | Elongation | Reduction of Area | Hardness |
|---|---|---|---|---|---|
| MPa, min | MPa, min | %, min | %, min | Rockwell, max | |
| Cold-worked (as worked or stress-relieved) / under 12.7mm | 585 | 345 | 8 | ... | ... |
| Cold-worked (as worked or stress-relieved) / 12.7mm to 76.2mm, incl | 585 | 345 | 15 | ... | ... |
| Cold-worked (as worked or stress-relieved) / 76.2mm to 101.6mm, incl | 552 | 345 | 15 | ... | ... |
| Hot-worked (as hot-worked or stress-relieved) / 76.2mm and less | 517 | 241 | 30 | ... | ... |
| Hot-worked (annealed) or cold-worked (annealed) / All sizes | 480 | 170 | 35 | ... | ... |
*Mechanical Properties According to ASTM B164
We can provide materials in different delivery states according to your requirements. Please confirm carefully with the supplier before placing the order.
