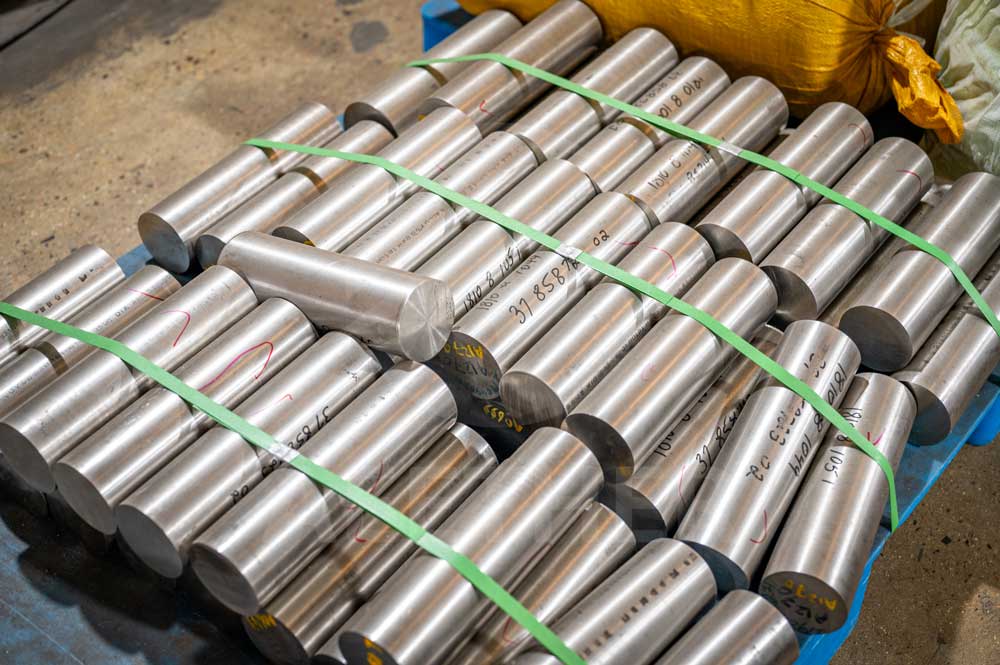

Monel K-500 Round Bar & Rod Supplier
As a professional nickel alloy supplier, we manufacture high quality Monel K-500 round bar & rod.
Monel K-500 is a nickel alloy often used in marine applications. The nickel and copper contents give the alloy excellent room temperature corrosion resistance. At the same time, as a precipitation-strengthened alloy, Monel K-500 can obtain very high strength through aging treatment.
We manufacture Monel K-500 round bar & rod according to ASTM B865. We will strictly solution treatment and aging treatment of the alloy, and straighten each round bar & rod. If you have requirements for the dimensional accuracy of the material, we can perform fine grinding of the material.
Chemical Composition of Monel K-500
S ≤ 0.010%
Si ≤ 0.50%
C ≤ 0.18%
Mn ≤ 1.50%
Al: 2.30% ~ 3.15%
Ti: 0.35% ~ 0.85%
Cu: 27.0% ~ 33.0%
Fe ≤ 2.0%
Ni ≥ 63.0%
*Chemical Composition According to ASTM B865
Customized Dimensions
h9 / h11 Tolerance Available
*Customized size please confirm with us
Standards for Monel K-500 Round Bar & Rod
*As a professional manufacturer, our default standard for Monel K-500 round bar & rod is ASTM B865. We can also produce according to other standards as per you required.
Try our Premium Products
Surface to be Customized
Data Sheet
Physical Properties
| Density | g/cm3 | 8.44 | |
|---|---|---|---|
| lb/in.3 | 0.305 | ||
| Melting Range | °F | 2400 - 2460 | |
| °C | 1315 - 1350 | ||
Mechanical Properties
| Condition & Size | Tensile Strength | Yield Strength (0.2% Offset) | Elongation | Reduction of Area | Hardness |
|---|---|---|---|---|---|
| MPa, min | MPa, min | %, min | %, min | Rockwell C, min | |
| Hot-worked and age-hardened / All sizes | 965 | 690 | 20 | ... | 27 |
| Cold-worked and age-hardened / 6.4mm to 25.4mm, incl | 1000 | 760 | 15 | ... | 32 |
| Cold-worked and age-hardened / 25.4mm to 76.2mm, incl | 965 | 690 | 17 | ... | 29 |
| Cold-worked and age-hardened / 76.2mm to 101.6mm, incl | 930 | 655 | 20 | ... | 25 |
| Annealed and age-hardened / Up to 25.4mm | 895 | 620 | 20 | ... | 24 |
| Annealed and age-hardened / 25.4mm and over | 895 | 585 | 20 | ... | 24 |
*Mechanical Properties According to ASTM B865
According to your requirements for the mechanical properties of the material, we will use different heat treatment methods to produce.
Our Capacity
Our
Certificates
We hold widely recognized industry certifications such as ISO 9001 and ISO 14001. These certifications demonstrate the quality of our production and compliance with regulations throughout the manufacturing process. Additionally, certifications such as EN 9100 showcase our commitment to product quality in specific sectors, including aerospace.
ISO
9001
ISO
14001
ISO
45001
EN
9100
Customers
Said
The customers' original words of appreciation in the email communication records are a genuine expression of their feelings, and also the most powerful testament to the high quality of our products and sales services.
0
We are
Trusted by
We have not only supplied products to many well-known companies, but also served as consultants to answer their technical questions. Many prestigious universities have also used our materials in experiments.
SpaceX
General
Electric
Hitachi
Energy
Siemens
Energy
Honeywell
NASA
Safran
Total
Energies
Baker
Hughes
LG
Electronics
Stanford
University
University
of Oxford
Columbia
University
University
of Michigan
University
of Washington
Washington State
University
University
of Texas at Austin
Texas Tech
University
University
of Florida
University
of Illinois
FAQ
How to distinguish between Monel K-500 and Monel 400?
Both materials are nickel-copper alloys, but the main difference lies in their strengthening methods. Monel 400 is a solid solution strengthened alloy, while Monel K-500 is a precipitation strengthened alloy. Therefore, Monel K-500 is generally stronger.
What is the difference between a Round Bar and a Rod?
Generally, a Round Bar has a larger diameter, typically over 30mm, while materials with smaller diameters are called Rods. Their manufacturing processes also differ. Round bars are generally produced by hot rolling or forging. Rods are generally produced by cold drawing or hot rolling. Additionally, rods with a diameter less than 10mm are generally cutted from wire rod.
What are the differences between hot-rolled and forged round bars?
Hot rolling and forging are both hot working methods, but they have different effects on material properties. Hot-rolled round bars generally have better roundness and smaller outer diameter tolerances. Forged round bars have better straightness, and the process can be used to achieve a finer grain. Forged round bars can have their roundness and dimensional accuracy issues addressed through grinding.
Can round bars undergo ultrasonic testing?
Yes. We usually perform ultrasonic testing on the material after smelting or forging to confirm the absence of internal defects such as cracks and porosity. Of course, if you require another ultrasonic test after the material is finalized, we can also perform it according to your needs.
Can you provide black bars?
Unless otherwise specified, we provide products with a bright surface by default. If you require further complex processing of the product, you can request us to supply black bars, which are cheaper than bright bars, but have slightly larger tolerances.
Monel K-500 Applications
