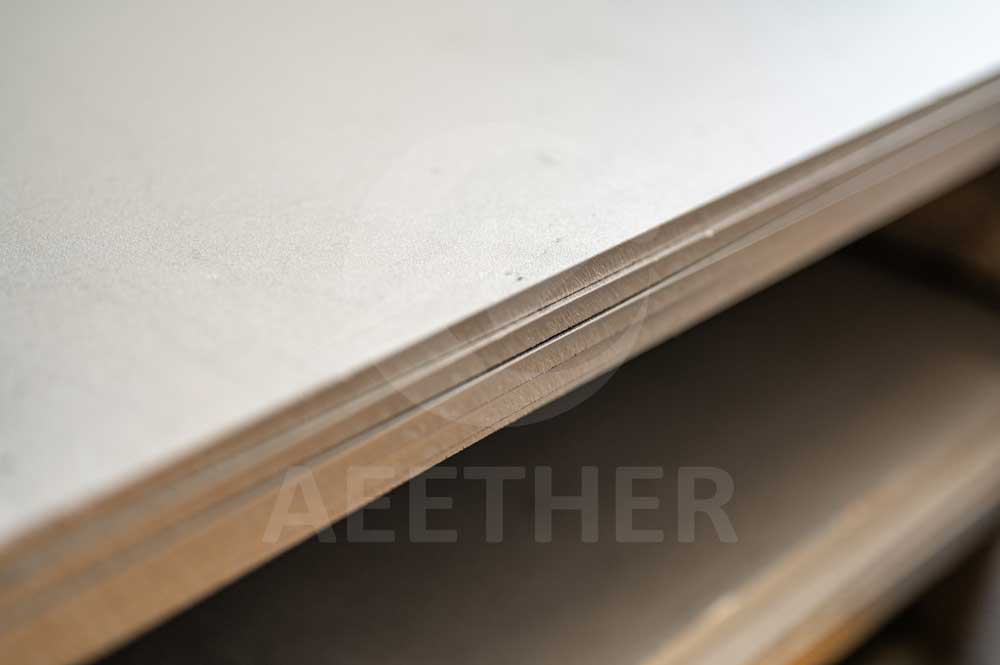

Monel 400 Plate Supplier
Monel 400 is a nickel-copper alloy. It has excellent corrosion resistance and mechanical properties. It can perform well in many strong acid and alkaline environments. In addition, Monel 400 plate also has good machinability and weldability. This allows it to be widely used in more fields.
We can supply Monel 400 plates in various sizes. Our plates meet ASTM B127 standards and are meticulously manufactured and tested. This ensures maximum product quality and performance. Our plates can be widely used in marine and chemical fields, such as seawater desalination equipment, chemical process equipment, seawater ship accessories, etc.
Our Monel 400 plate is produced by hot rolling process. This process better guarantees the size and thickness of the material. We can also provide various surface treatments according to customers' requirements, such as polishing, sandblasting and pickling, etc. We are always committed to providing high quality products and excellent customer service.
Chemical Composition of Monel 400
S ≤ 0.024%
Si ≤ 0.50%
C ≤ 0.30%
Mn ≤ 2.00%
Cu: 28.0% ~ 34.0%
Fe ≤ 2.5%
Ni ≥ 63.0%
*Chemical Composition According to ASTM B127
Customized Dimensions
Tolerance according to ASTM B906
*Customized size please confirm with us
Standards for Monel 400 Plate
*We will strictly produce Monel 400 Plate according to the standard
Try our Premium Products
Surface
Data Sheet
Physical Properties
| Density | g/cm3 | 8.80 | |
|---|---|---|---|
| lb/in.3 | 0.318 | ||
| Melting Range | °F | 2370 - 2460 | |
| °C | 1300 - 1350 | ||
Mechanical Properties
| Condition & Size | Tensile Strength | Yield Strength (0.2% Offset) | Elongation | Reduction of Area | Hardness |
|---|---|---|---|---|---|
| MPa, min | MPa, min | %, min | %, min | Rockwell B | |
| Annealed | 485 | 195 | 35 | ... | ... |
| As-rolled | 515 | 275 | 25 | ... | ... |
*Mechanical Properties According to ASTM B127
FAQ
Are copper-nickel alloy and nickel-copper alloy the same material?
No. Copper-nickel alloy is a copper-based alloy, with copper as the main element; nickel-copper alloy is a nickel-based alloy, with nickel as the main element. Their properties differ significantly, and careful differentiation is essential during procurement.
Do you have stock?
We have a large stock of standard sizes. We can deliver these products as quickly as possible. If your width and length are non-standard, we can also guarantee delivery time by cutting. For non-standard sizes, we need to customize them from scratch.
Can the sheet metal be ultrasonically tested?
We generally perform ultrasonic testing on billets. For finished plates, ultrasonic testing becomes difficult due to their large size. However, if you require a smaller width and length, ultrasonic testing is feasible.
Can you provide thick plates from other brands?
Yes. We can provide not only sheet metal from other Chinese brands but also imported brands from other countries. However, this is limited to standard sizes and requires a certain quantity.
What is annealing?
Annealing is a heat treatment process. This involves heating the material to a specific temperature, holding it for a certain time, and then cooling it at a controlled rate. These parameters depend on the specific dimensions. The purpose of annealing is to soften the material, thereby improving its plasticity.
What is shot blasting?
Shot blasting is a surface treatment method. It refers to the process of using a grinding wheel to impact the surface of a material at high speed with fine, hard particles. The surface after shot blasting has a refined matte texture and is suitable for applications requiring high-quality material surfaces.
Monel 400 Applications
