Inconel 625 Capillary Tube Supplier

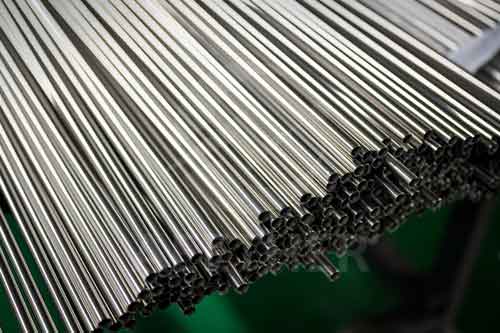

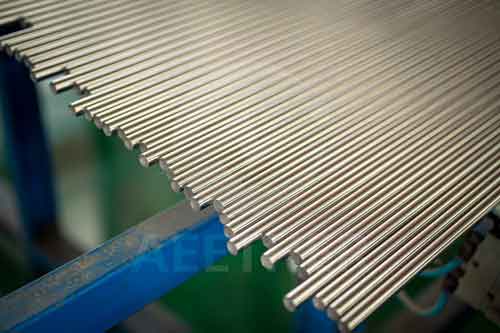

Our Inconel 625 capillary tubes are manufactured using precision processes, resulting in a smooth surface and high dimensional accuracy. We offer various outer diameters and wall thicknesses to meet specific application requirements, ensuring stable operation under complex conditions. Whether used for transporting corrosive media or as components of precision instruments, these capillary tubes provide reliable long-term service.
Inconel 625 capillary tubes are commonly used in applications requiring high reliability. In marine engineering, they can be used in hydraulic lines or instrumentation lines, withstanding long-term immersion in seawater without localized corrosion. In aerospace, these capillary tubes are sometimes used as protective sheathing for sensor circuits in high-temperature areas or as cooling medium channels. In chemical processing and pollution control equipment, they can be used to transport corrosive media or as sampling lines, maintaining unobstructed flow under high-temperature and acidic conditions.
Chemical Composition of Inconel 625
*Chemical Composition According to ASTM B444 / ASTM B704
Inconel 625 is a nickel-chromium-molybdenum-niobium alloy. The chemical composition of this material balances high strength with excellent corrosion resistance. The addition of chromium and molybdenum ensures its stability in both oxidizing and reducing media, while the synergistic effect of niobium and molybdenum, through solid solution strengthening, allows the alloy to achieve high mechanical strength without heat treatment.
Customized Dimensions
The size can be customized according to ASME B36.10 / ASME B36.19
*Customized size please confirm with us
Standards for Inconel 625 Capillary Tube
*We will strictly produce Inconel 625 Capillary Tube according to the standard
Try our Premium Products
Surface to be Customized
Data Sheet
Physical Properties
| Density | g/cm3 | 8.44 | |
|---|---|---|---|
| lb/in.3 | 0.305 | ||
| Melting Range | °F | 2350 - 2460 | |
| °C | 1290 - 1350 | ||
Mechanical Properties
| Condition & Size | Tensile Strength | Yield Strength (0.2% Offset) | Elongation | Reduction of Area | Hardness |
|---|---|---|---|---|---|
| MPa, min | MPa, min | %, min | %, min | Rockwell, max | |
| Seamless / Grade 1 (annealed) | 827 | 414 | 30 | ... | ... |
| Seamless / Grade 2 (solution annealed) | 690 | 276 | 30 | ... | ... |
| Welded / Grade 1 (annealed) | 827 | 414 | 30 | ... | ... |
| Welded / Grade 2 (solution annealed) | 690 | 276 | 30 | ... | ... |
*Mechanical Properties According to ASTM B444 / ASTM B704
In terms of performance, the most outstanding feature of Inconel 625 capillary tube is its combination of strength and toughness over a wide temperature range. It maintains good tensile strength and creep resistance under both low and high temperature conditions. The addition of molybdenum provides excellent resistance to pitting and crevice corrosion, making it particularly suitable for long-term use in media containing chloride ions. Furthermore, the presence of niobium not only strengthens the material but also improve
Inconel 625 Applications
Other Informations
Package

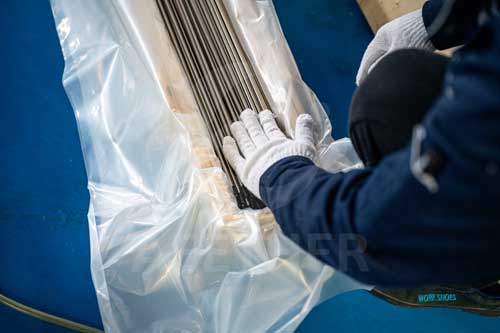

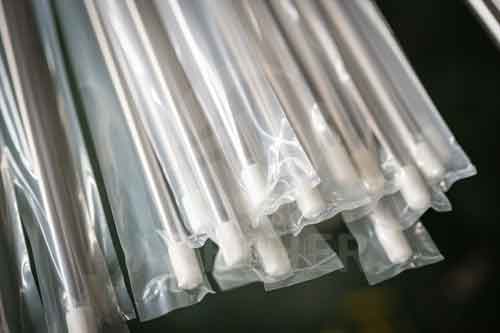

Plastic Bag

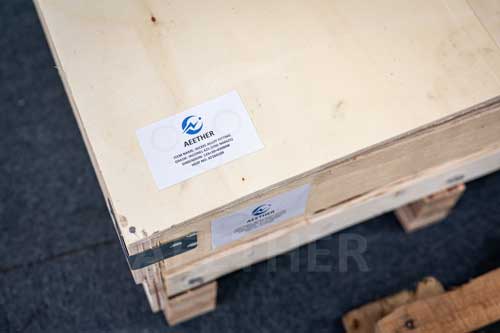

Wooden Case
Logistics
By Sea
By Air
Price Term
