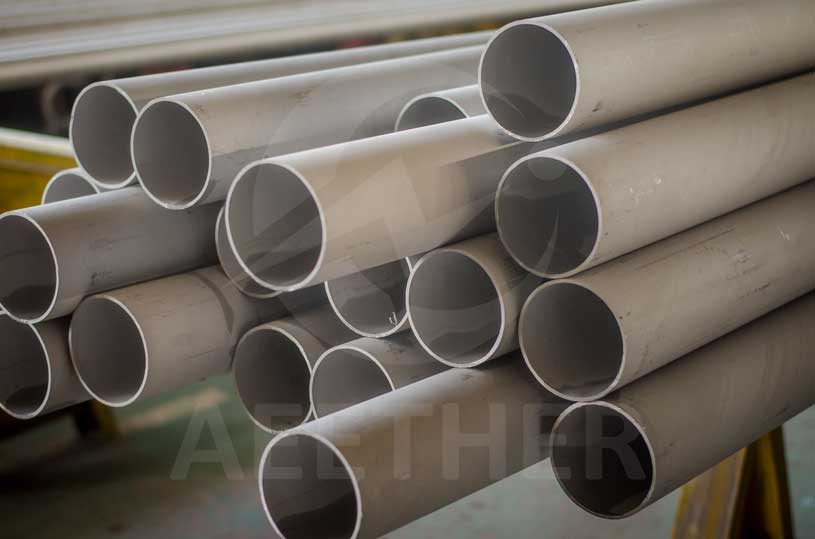

Inconel 617 Seamless Pipe & Tube Supplier
Inconel 617 is a nickel-based superalloy. The alloy is commonly used in fields such as aerospace, petrochemical and energy industries.
Inconel 617 seamless pipe & tube is one of the important forms of Inconel 617 alloy. The material properties of Inconel 617 seamless pipe & tube are excellent. It can maintain stable chemical and physical properties at high temperatures. This alloy also has excellent oxidation and corrosion resistance. At the same time, Inconel 617 alloy also has good fatigue crack growth resistance and oxidation spalling resistance, which can effectively prolong the service life.
We offer Inconel 617 seamless pipe & tube that comply with ASTM B167. The stability of product quality and performance is our constant pursuit. We can do customized processing according to customers' requirements. In the process of processing, we guarantee that Inconel 617 alloy will not have problems such as deformation, cracks and defects. At the same time, our Inconel 617 seamless pipe & tube has a smooth surface and precise dimensions.
Chemical Composition of Inconel 617
S ≤ 0.015%
Si ≤ 1.00%
C: 0.05% ~ 0.15%
Mn ≤ 1.00%
B ≤ 0.006%
Co: 10.0% ~ 15.0%
Al: 0.80% ~ 1.50%
Ti ≤ 0.60%
Cu ≤ 0.50%
Fe ≤ 3.0%
Mo: 8.0% ~ 10.0%
Cr: 20.0% ~ 24.0%
Ni ≥ 44.5%
*Chemical Composition According to ASTM B167
Customized Dimensions
The size can be customized according to ASME B36.10 / ASME B36.19
*Customized size please confirm with us
Standards for Inconel 617 Seamless Pipe & Tube
*We will strictly produce Inconel 617 Seamless Pipe & Tube according to the standard
Try our Premium Products
Surface to be Customized
*We can also sandblast the pipes according to your requirements
Data Sheet
Physical Properties
| Density | g/cm3 | 8.36 | |
|---|---|---|---|
| lb/in.3 | 0.302 | ||
| Melting Range | °F | 2430 - 2510 | |
| °C | 1332 - 1380 | ||
Mechanical Properties
| Condition & Size | Tensile Strength | Yield Strength (0.2% Offset) | Elongation | Reduction of Area | Hardness |
|---|---|---|---|---|---|
| MPa, min | MPa, min | %, min | %, min | Rockwell | |
| Cold-worked annealed or hot-worked annealed / All sizes | 665 | 240 | 35 | ... | ... |
*Mechanical Properties According to ASTM B167
Inconel 617 is a solid solution strengthened superalloy. It achieves the highest level of mechanical properties among similar alloys through solid solution strengthening.
FAQ
What is the role of cobalt in Inconel 617?

Cobalt primarily serves to strengthen Inconel 617 through solid solution strengthening. It not only increases the alloy’s strength but also maintains good ductility, while simultaneously helping to improve the alloy’s high-temperature performance.
What is the difference between "pipe" and "tube"?

There is no universally accepted definition distinguishing "pipe" from "tube". One interpretation is that "pipe" refers to tubing with a larger outer diameter, while "tube" refers to tubing with a smaller outer diameter. Another interpretation is that "pipe" follows the dimensional specifications in the Nominal Pipe Schedule, whereas "tube" is based on direct unit conversion. Therefore, when requesting a quote, please specify which type you require.
Do you apply plastic caps to the ends of the pipes?

By default, we use sturdy export wooden cases for packaging, which already provide adequate protection for the ends of seamless pipes. Therefore, we typically do not apply plastic pipe caps. However, if you have this requirement, please let us know in advance, and we will apply the caps free of charge.
Is eddy current testing a standard inspection procedure for pipes?

Unless you specifically request otherwise, we will perform non-destructive testing (NDT) in accordance with applicable standards. Some standards specify only one type of NDT method, so we may flexibly decide whether to perform eddy current testing based on the specific dimensions of the pipe. However, if you specifically require eddy current testing, we will carry it out according to your request.
How is pickling defined?

Pickling is a common surface treatment process that involves immersing seamless tubes in an acidic solution to dissolve scale, rust, and other impurities on the tube surface through the chemical action of the acid. Pickling not only gives the tube surface a uniform, matte finish but is also an essential preparatory step prior to cold rolling or cold drawing.
How should the polishing process for seamless pipes be understood?

Polishing is a process in which the surface of seamless pipes is ground to achieve a glossy appearance. The surface of polished seamless pipes is smoother and more aesthetically pleasing. If you have high requirements for the inner surface, we can also polish the inner walls. The processed pipes are called sanitary pipes and are commonly used in the food and medical industries.
