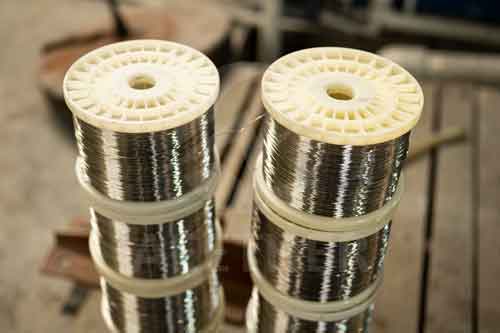

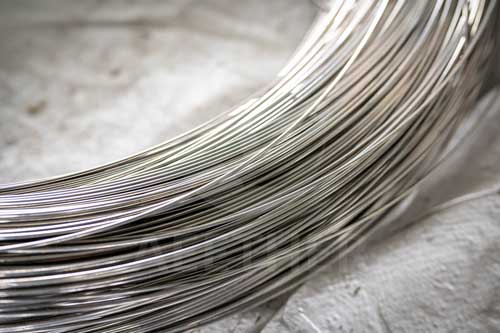

Inconel 600 Wire Supplier
As a leading nickel alloy supplier, AEETHER CO., LIMITED produces Inconel 600 (UNS N06600) wire in different sizes for your choice.
Inconel 600 is a widely used nickel alloy with excellent high temperature resistance and corrosion resistance. As a solid solution strengthened alloy, Inconel 600 can only be increased in strength by cold working.
We manufacture Inconel 600 wire according to ASTM B166. The Inconel 600 we produce strictly conforms to the standard in terms of dimensional tolerances and roundness. All of our Inconel 600 wire are delivered with a bright finish by default. Our advanced bright annealing furnaces allow us to precisely control your material performance requirements.
Chemical Composition of Inconel 600
S ≤ 0.015%
Si ≤ 0.50%
C ≤ 0.15%
Mn ≤ 1.00%
Cu ≤ 0.50%
Fe: 6.0% ~ 10.0%
Cr: 14.0% ~ 17.0%
Ni ≥ 72.0%
*Chemical Composition According to ASTM B166
In Inconel 600, nickel plays a role in high temperature resistance, while chromium plays a role in corrosion resistance.

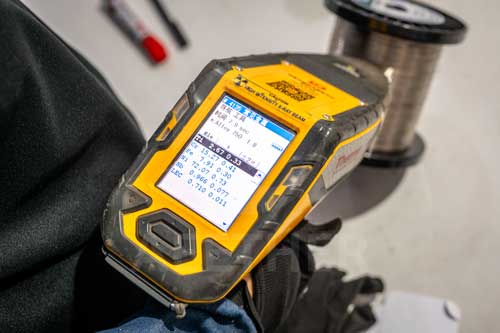

Supplier shall perform chemical analysis of material in accordance with ASTM B880.
Customized Dimensions

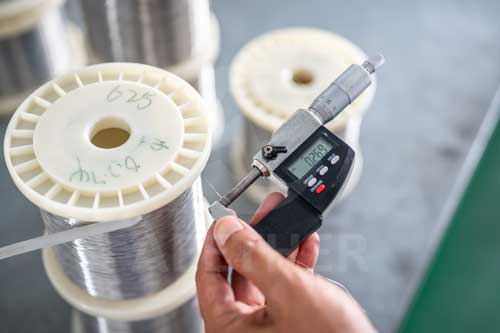

High precision Tolerance Available
*Customized size please confirm with us
Standards for Inconel 600 Wire
*As a professional manufacturer, our default standard for Inconel 600 wire is ASTM B166. We can also produce according to other standards as per you required.
Try our Premium Products
Two Forms to be Customized
Data Sheet
Physical Properties
| Density | g/cm3 | 8.47 | |
|---|---|---|---|
| lb/in.3 | 0.306 | ||
| Melting Range | °F | 2470 - 2575 | |
| °C | 1354 - 1413 | ||
Mechanical Properties
| Condition & Size | Tensile Strength | Yield Strength (0.2% Offset) | Elongation | Reduction of Area | Hardness |
|---|---|---|---|---|---|
| MPa, min | MPa, min | %, min | %, min | Rockwell, max | |
| Annealed, Under 0.032 (0.81) | 552-793 | ... | ... | ... | ... |
| Annealed, 0.032 (0.81) and over | 552-724 | ... | ... | ... | ... |
| Cold-worked, regular temper, all sizes | 827 | ... | ... | ... | ... |
| Cold-worked, spring temper, Up to 0.057 (1.45), incl | 1276 | ... | ... | ... | ... |
| Cold-worked, spring temper, Over 0.057 (1.45) to 0.114 (2.90), incl | 1207 | ... | ... | ... | ... |
| Cold-worked, spring temper, Over 0.114 (2.90) to 0.229 (5.82), incl | 1172 | ... | ... | ... | ... |
| Cold-worked, spring temper, Over 0.229 (5.82) to 0.329 (8.36), incl | 1138 | ... | ... | ... | ... |
| Cold-worked, spring temper, Over 0.329 (8.36) to 0.375 (9.53), incl | 1103 | ... | ... | ... | ... |
| Cold-worked, spring temper, Over 0.375 (9.53) to 0.500 (12.7), incl | 1069 | ... | ... | ... | ... |
| Cold-worked, spring temper, Over 0.500 (12.7) to 0.563 (14.3), incl | 965 | ... | ... | ... | ... |
*Mechanical Properties According to ASTM B166
Different delivery states of Inconel 600 wire are specified in the standard. Whether you need soft, hard or spring wire, we can meet your requirements. Please also confirm with us if you have requirements beyond the standard.
FAQ
What are the advantages of Inconel 600 compared to stainless steel?

Whether in terms of corrosion resistance, high-temperature resistance, or mechanical strength, Inconel 600 is superior to stainless steel. However, this performance improvement also brings higher material costs.
Can you produce spring wire?

Yes, we can supply spring wire. We can even customize spring wire based on the tensile strength you provide. If you can tell us whether your finished product is a tension spring or a compression spring, we can further optimize the performance of the spring wire accordingly.
Is steel spool packaging optional?

Yes, steel spool packaging is optional. We can customize steel spools specifically for wire based on your provided dimensions or drawings. However, since steel spool customization involves mold and processing costs, it usually requires a certain purchase quantity to execute. By default, our wire is delivered in loose coils or wound on plastic spools. If you prefer steel spool packaging, please communicate with us in advance to confirm the minimum order quantity and delivery time.
What is the difference between wire rod and wire?

Wire rod is the raw material for wire production. It is first hot-rolled into coils, and then cold-drawn to obtain wire. Therefore, wire rod has a larger diameter, while wire has a smaller diameter. Furthermore, wire can be customized in terms of performance, while wire rod cannot.
What do soft, semi-hard, and hard states of wire refer to?

These are different delivery states of wire. Wire reaches its maximum strength after cold drawing, and subsequent heat treatments can impart different tensile strengths. Hard wire has the highest tensile strength, followed by semi-hard wire, and soft wire has the lowest.
Can you provide samples?

Providing samples is no problem if we have them in stock. However, a sample fee may apply depending on the specific size and quantity. Additionally, you will need to bear the shipping costs for the samples.
Inconel 600 Applications
Other Informations
Package

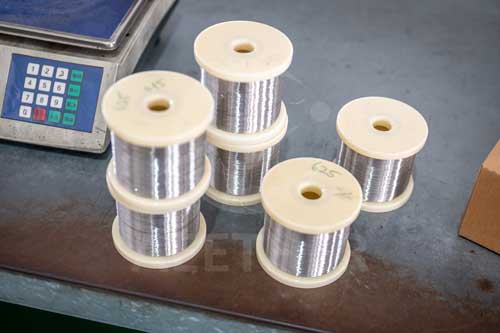

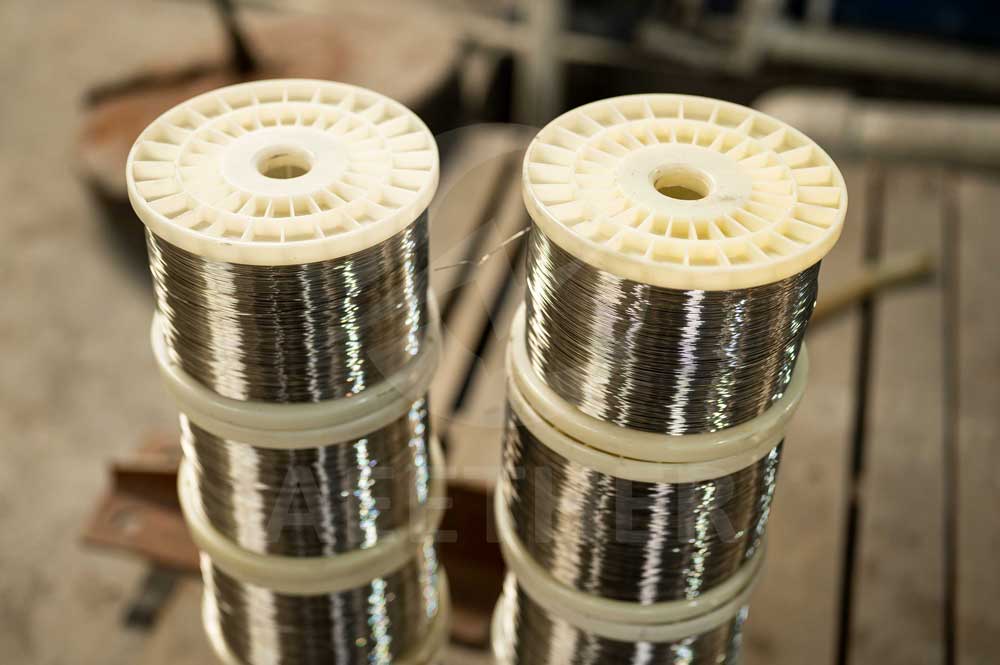

Plastic Spool
Plastic Bag

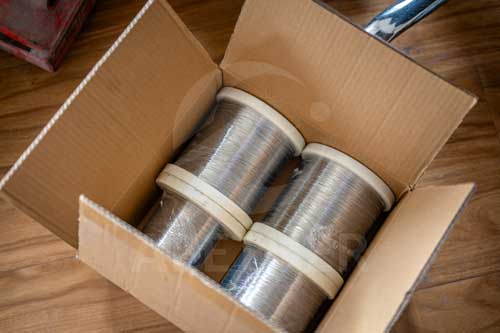

Carton Box

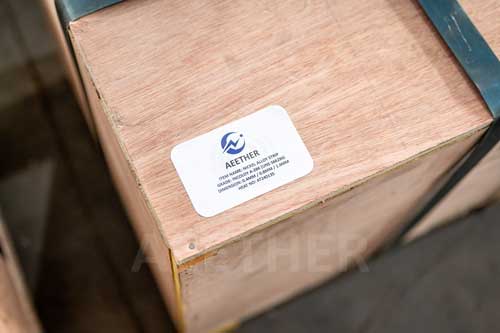

Wooden Case

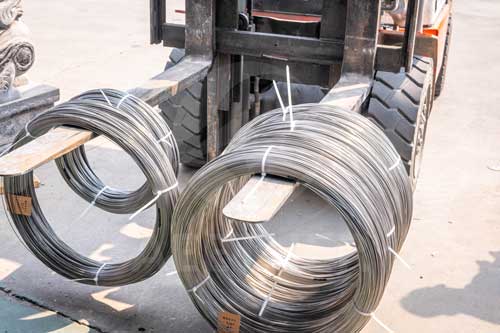

Logistics
By Sea
By Air
