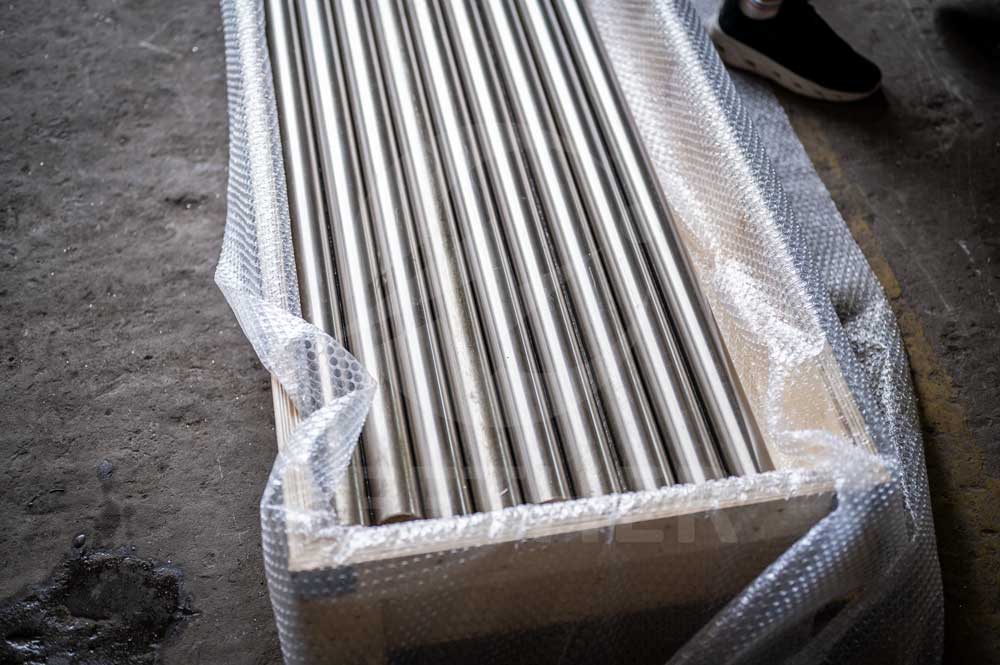

Incoloy 825 Round Bar & Rod Supplier
As a professional Incoloy alloy supplier, we manufacture Incoloy 825 (UNS N08825) round bar & rod with high cost performance.
Incoloy 825 is a very commonly used superalloy. Compared to Inconel 625, it sacrifices some corrosion resistance and strength. But this comes at a lower price. Therefore, if the properties of this alloy are sufficient for your needs, it is a very cost-effective option.
We manufacture Incoloy 825 round bar & rod according to ASTM B425 by default. For round bars, we polish the material after hot rolling or forging to keep the size of the material. For rod, we cold draw the material on a round bar basis. If you need to relieve the internal stress of the material while keeping the surface of the material bright, we can bright anneal it to meet the performance requirements. All Incoloy 825 round bar & rods are straightened to exacting standards to ensure that the straightness of the material meets the requirements.
Chemical Composition of Incoloy 825
S ≤ 0.030%
Si ≤ 0.50%
C ≤ 0.05%
Mn ≤ 1.00%
Al ≤ 0.20%
Ti: 0.60% ~ 1.20%
Cu: 1.50% ~ 3.00%
Fe ≥ 22.0%
Mo: 2.5% ~ 3.5%
Cr: 19.5% ~ 23.5%
Ni: 38.0% ~ 46.0%
*Chemical Composition According to ASTM B425
Incoloy 825 adds certain copper and molybdenum elements based on Incoloy 800, which improves the overall corrosion resistance of the material.

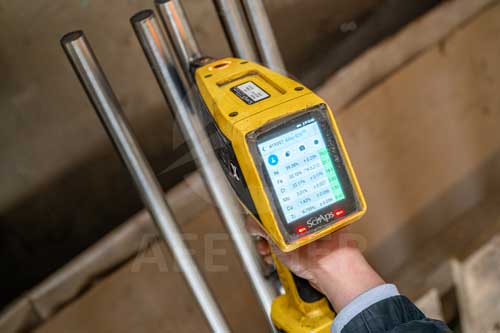

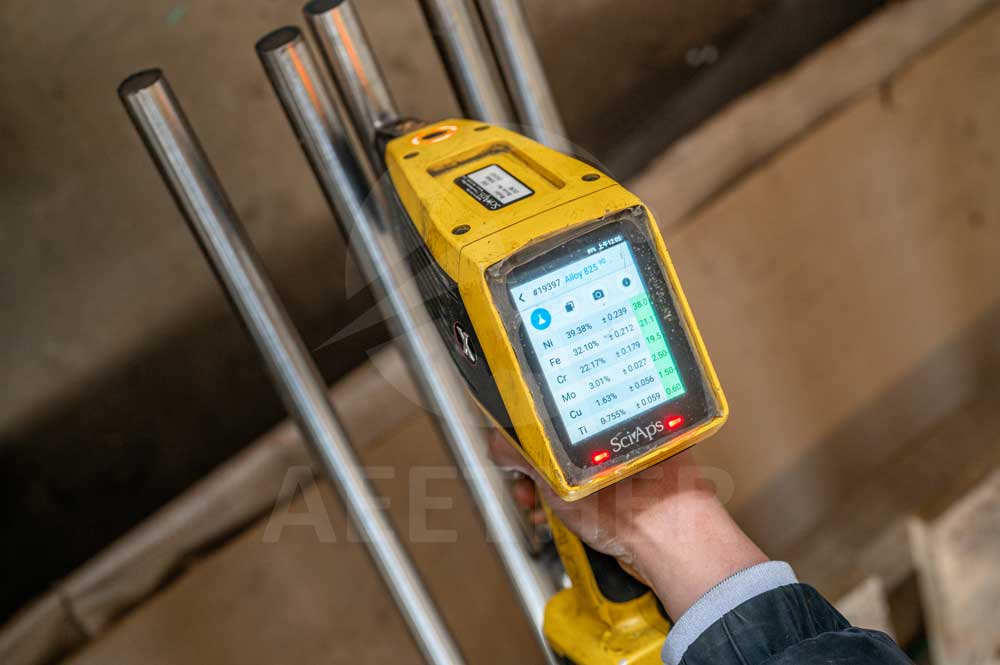

Supplier shall perform chemical analysis of material in accordance with ASTM B880.
Customized Dimensions
h9 / h11 Tolerance Available
*Customized size please confirm with us
Standards for Incoloy 825 Round Bar & Rod
*As a professional manufacturer, our default standard for Incoloy 825 round bar & rod is ASTM B425. We can also produce according to other standards as per you required.
Try our Premium Products
Surface to be Customized
Data Sheet
Physical Properties
| Density | g/cm3 | 8.14 | |
|---|---|---|---|
| lb/in.3 | 0.294 | ||
| Melting Range | °F | 2500 - 2550 | |
| °C | 1370 - 1400 | ||
Mechanical Properties
| Condition & Size | Tensile Strength | Yield Strength (0.2% Offset) | Elongation | Reduction of Area | Hardness |
|---|---|---|---|---|---|
| MPa, min | MPa, min | %, min | %, min | Rockwell, max | |
| Annealed | 586 | 241 | 30 | ... | ... |
*Mechanical Properties According to ASTM B425
